3 Operating Modes

  • Updated

The radiator can be set to three different operating modes: Scheduled, Manual, and Temporary Manual.

This guide explains the benefits of each mode and how to activate them.



 Scheduled Mode
Ideal for hassle-free operation.
The radiator is programmed with different temperatures for specific time slots and days of the week. It operates automatically according to the saved schedule and the detected room temperature.





 Manual Mode
The simplest mode.
The radiator operates without schedules and maintains the temperature set either via the App or directly on the radiator, based on the detected room temperature.
This mode is recommended for short-term use or when you prefer to adjust the temperature manually.









 Temporary Manual Mode

Useful for temporarily adjusting the scheduled temperature.
In this mode, the radiator continues to follow the scheduled automatic settings but allows you to temporarily modify the setpoint.
This lets you increase or decrease the temperature to suit immediate needs.

The temperature can be adjusted for a minimum of 30 minutes and a maximum of 23 hours.





Procedure

  1. Make sure your smartphone is near the radiator.

  2. Open the IRSAP NOW app and log in.

  3. Connect the app to your radiator.



Scheduled

Manual

Temporary Manual

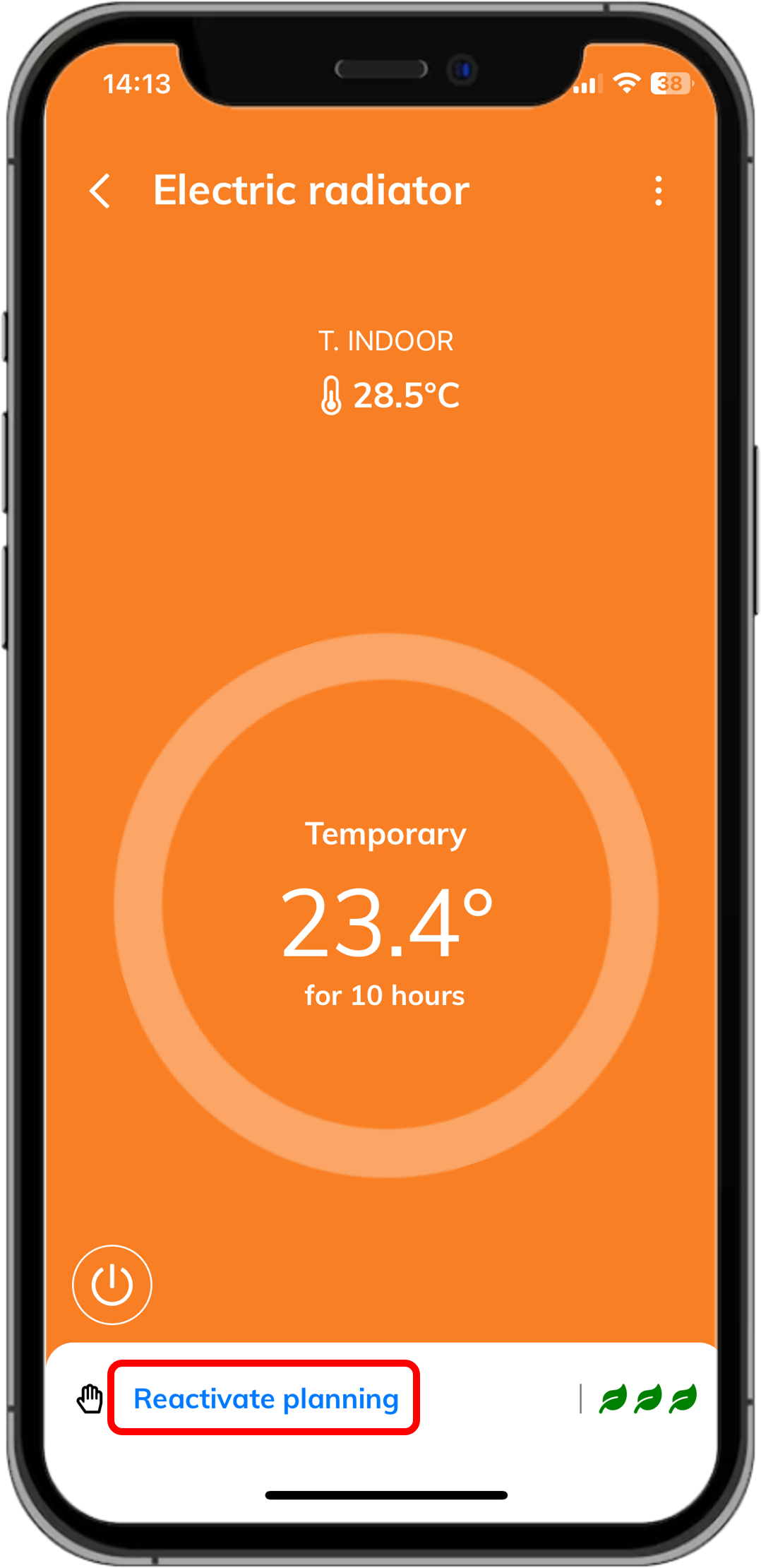

  1. Select Reactivate planning at the bottom of the page

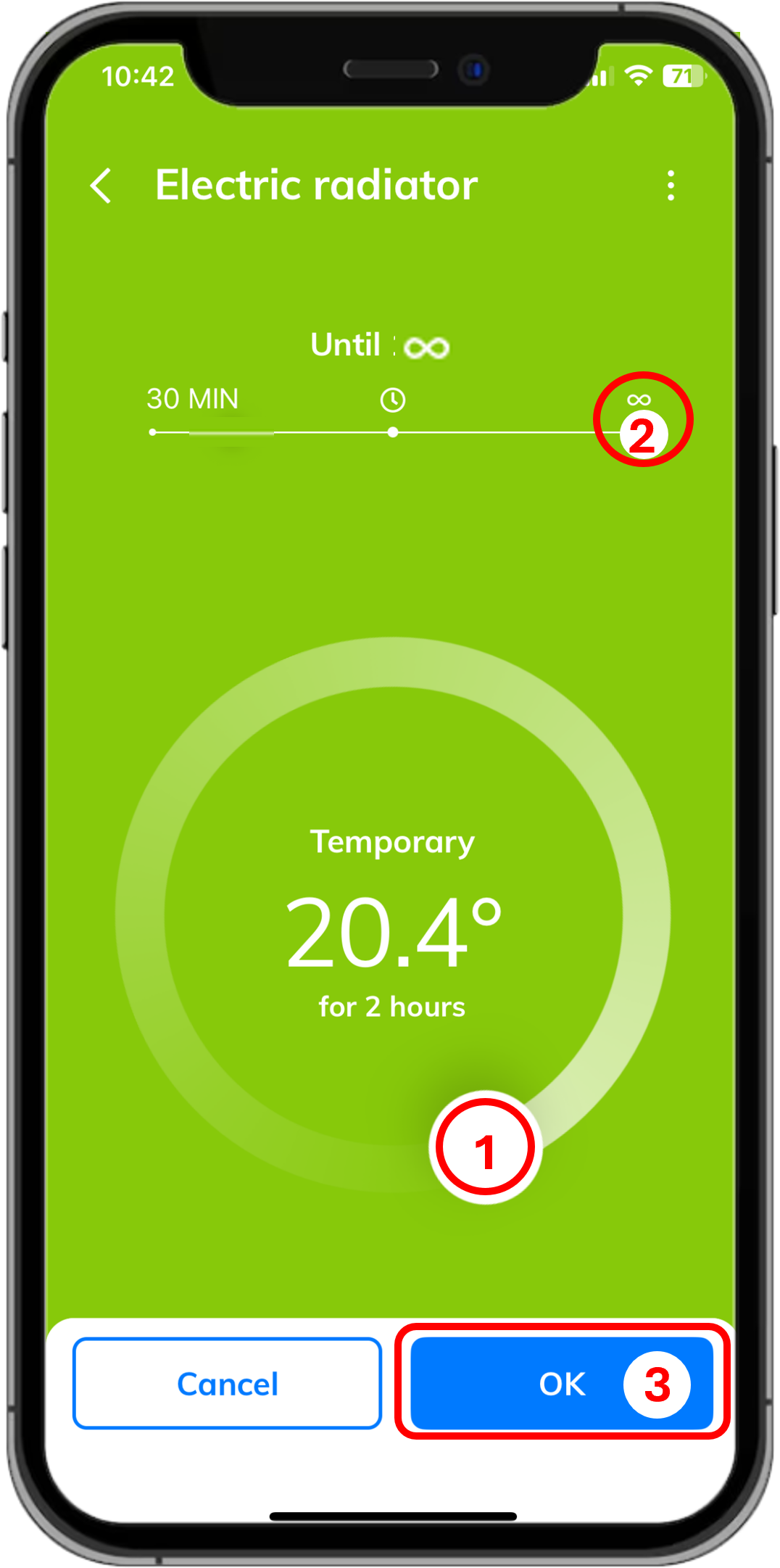

  1. Select the new setpoint by rotating the temperature dial.

  2. Set the duration to infinite by moving slider n. 2 all the way to the right, until you reach the infinity (∞) symbol.

  3. Tap OK to confirm

  1. Select the new setpoint by rotating the temperature dial.

  2. Set a duration between 30 minutes and 23 hours.

  3. Tap OK to confirm







Procedure

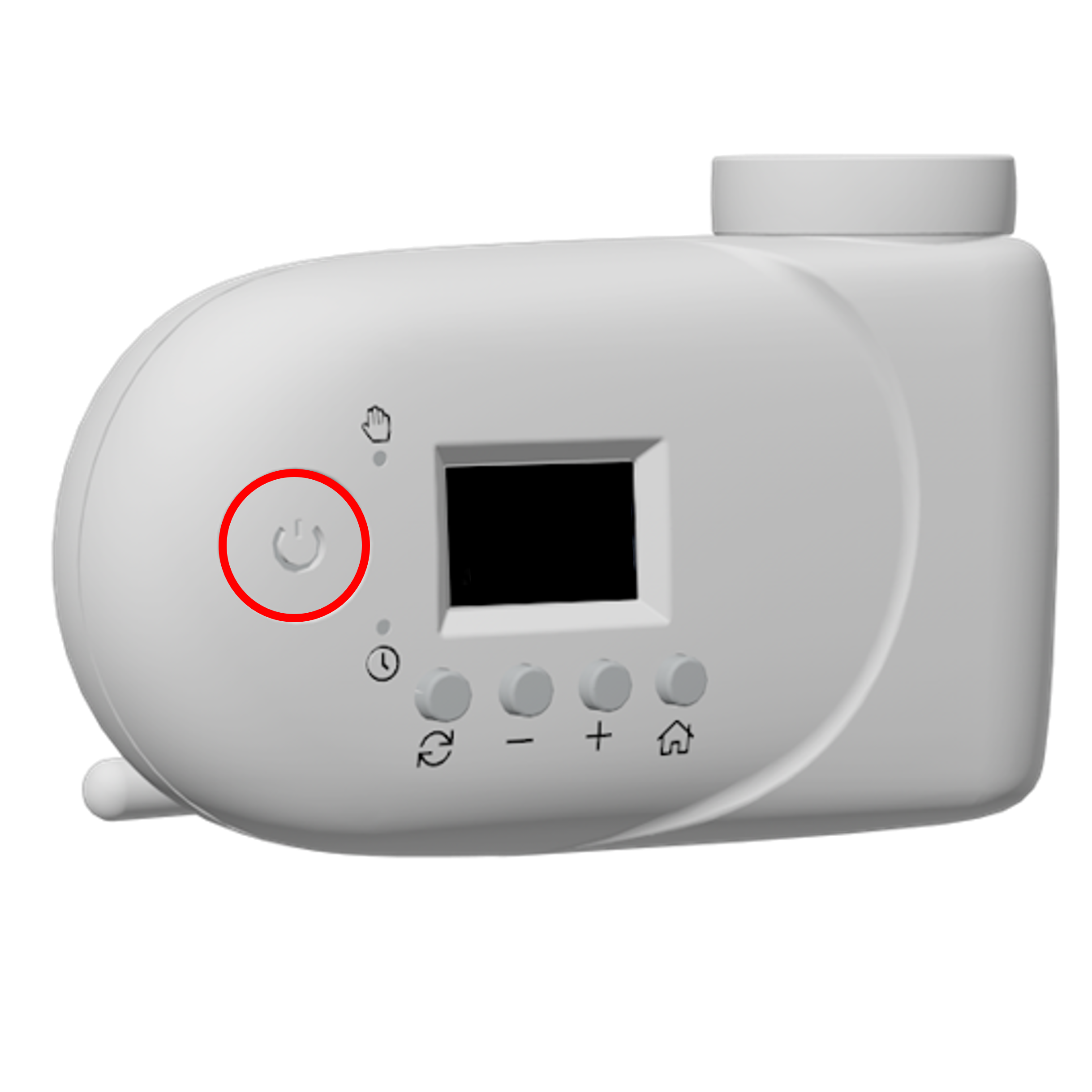

  1. Press the Power button to turn the display on

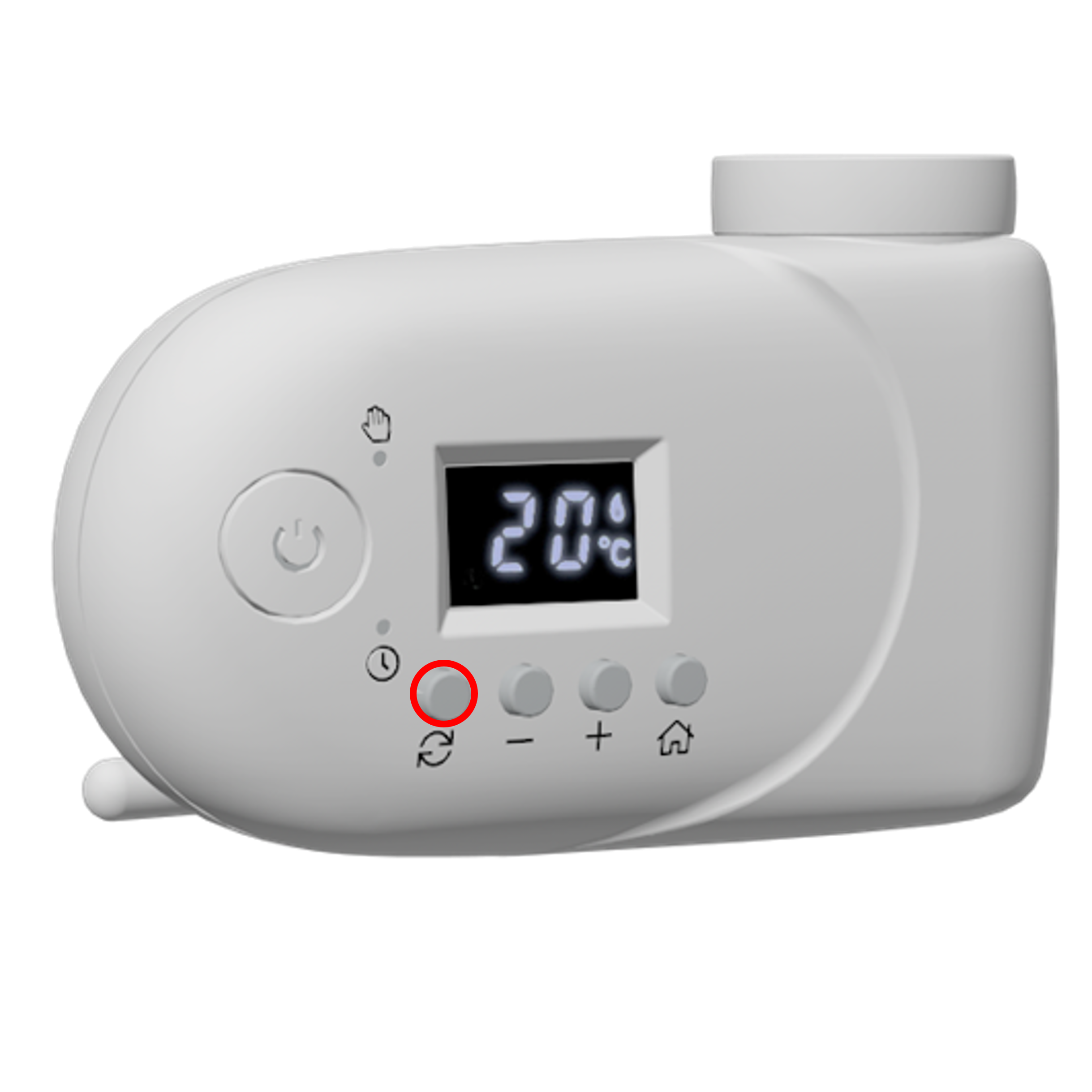

  1. Press the Switch button to set the mode:

    • MANUAL
      ( LED ON)

    • SCHEDULED
      ( LED ON)

For TEMPORARY MANUAL :


  1. Set the Scheduled mode with the Switch button
     (both    LEDs on)

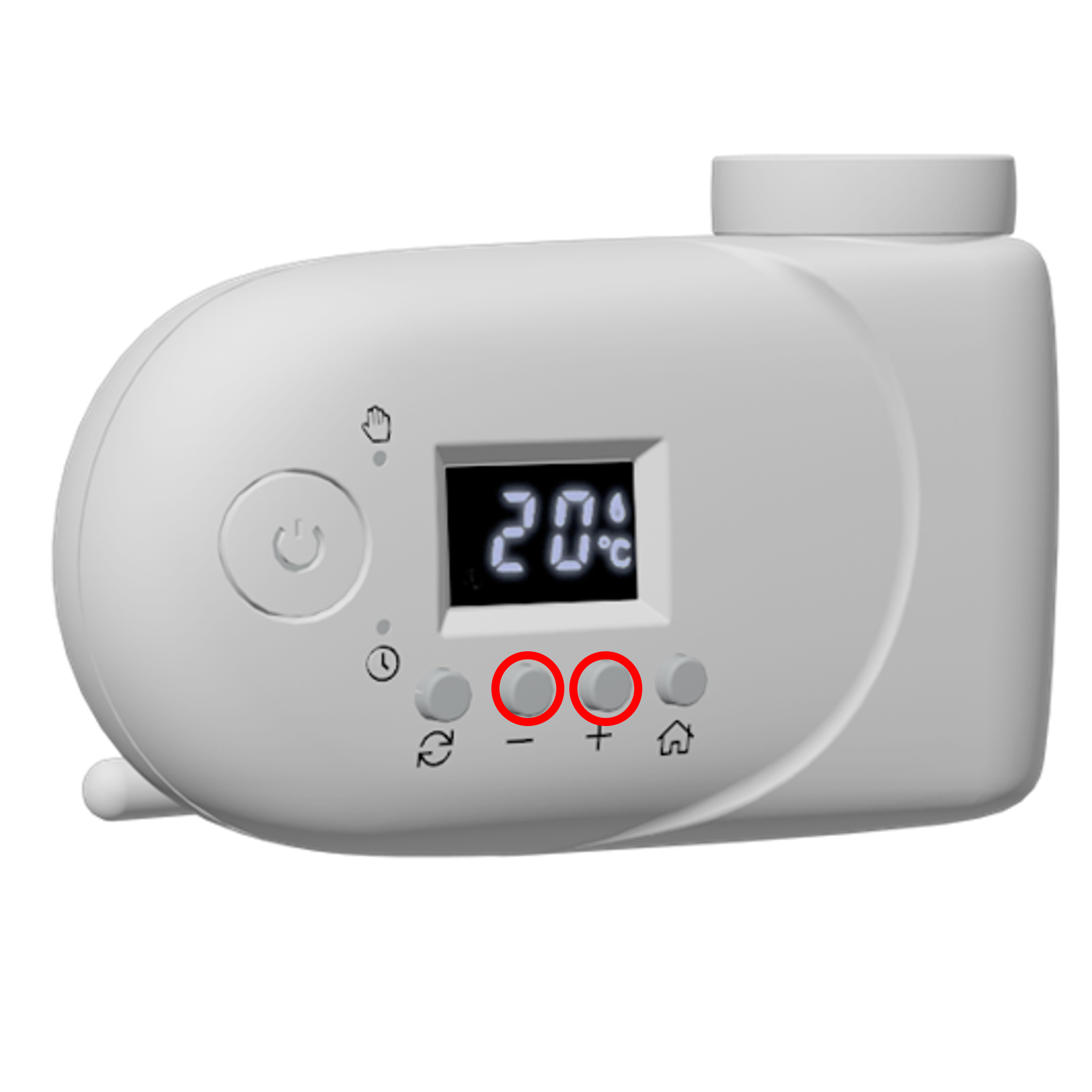

  2. Press the setpoint buttons (- / +) to adjust the temporary temperature.

    The new setpoint will remain active until the next scheduled time slot starts.




Note: By pressing the Switch button , you can switch back to Manual or Scheduled mode at any time.





Tips and Troubleshooting

Here you can find answers to the most frequently asked questions:


Explore the Radiator Main screen page to discover extra functions available in the app.
