How to Schedule Your Radiator

  • Updated

This guide helps you set up your radiator for automatic operation based on custom temperatures and time slots.



Note:
In case of brief power outages, the schedule may be interrupted. After restarting, the radiator will automatically switch to Manual Mode with a default temperature of 18 °C. To restore your schedule, reconnect the device to the IRSAP NOW App.



Procedure

Scheduling can only be performed via the App.

  1. Make sure your smartphone is near the radiator.


  2. Open the IRSAP NOW app and log in.


  3. Connect the app to your radiator.

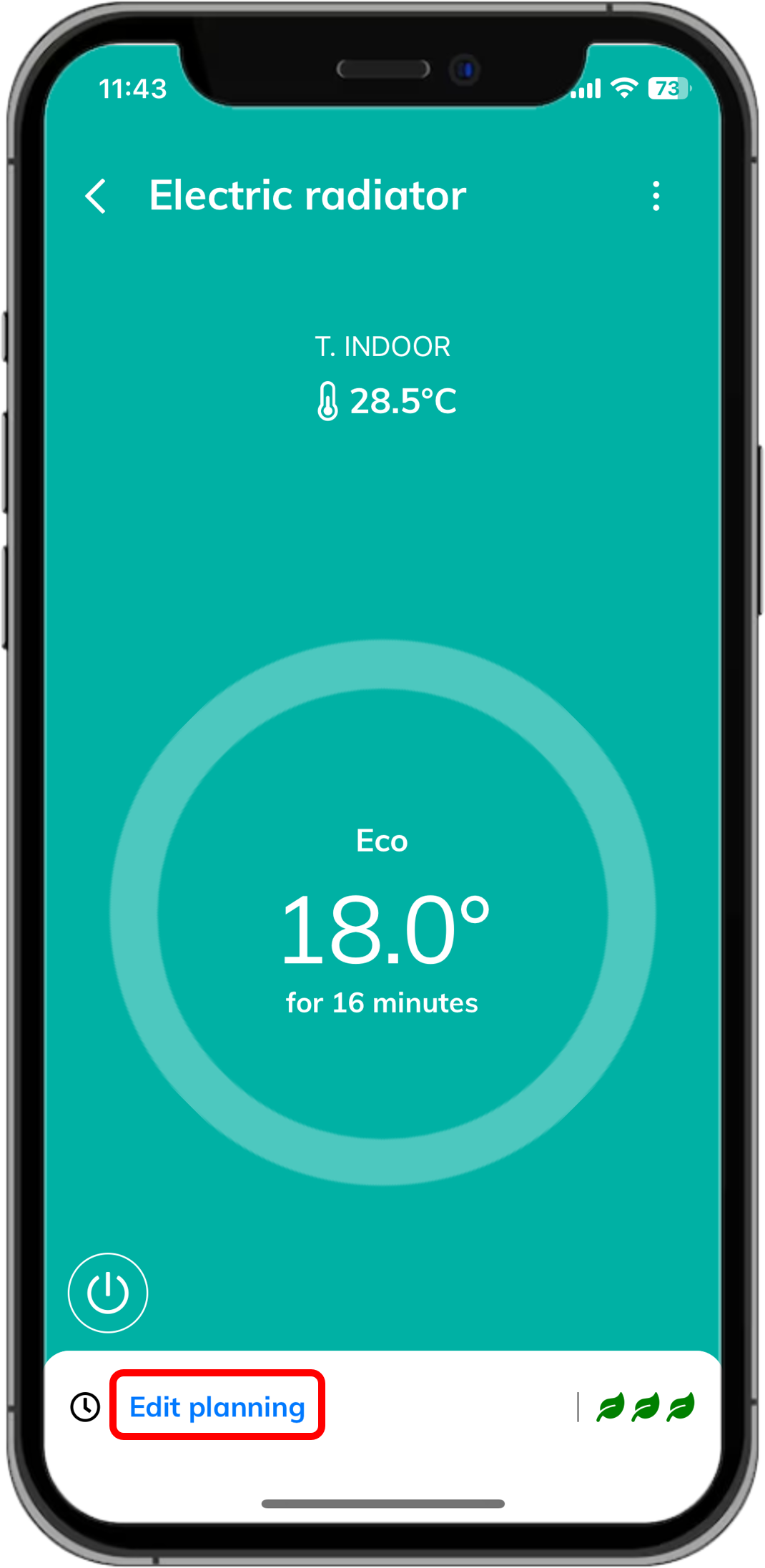

  1. Tap Edit planning at the bottom-left of the radiator homepage.

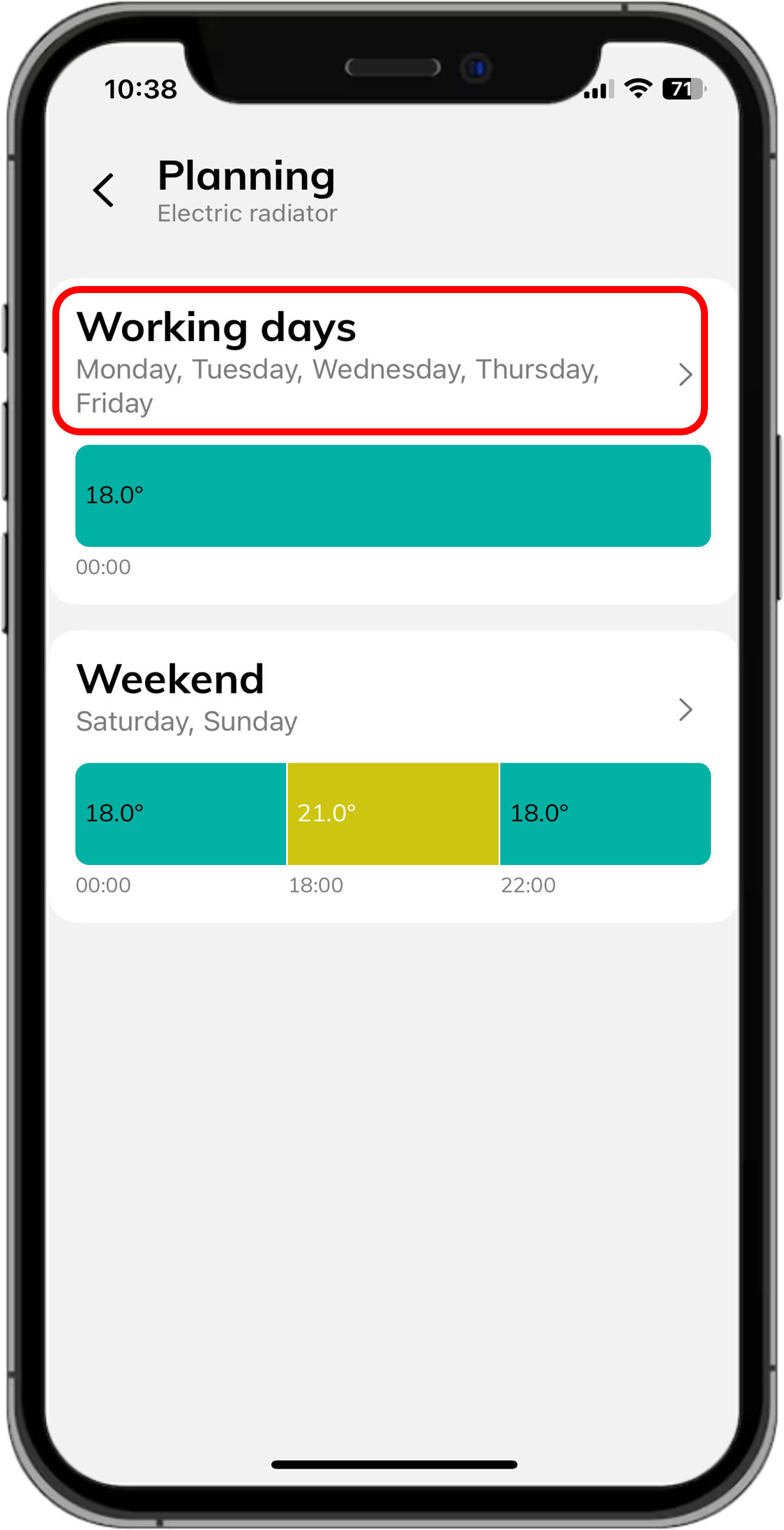

  1. Select Working days or Weekend, depending on which days you want to schedule.
  1. Choose Your Scheduling Option:

    • Create a single schedule for all working days:

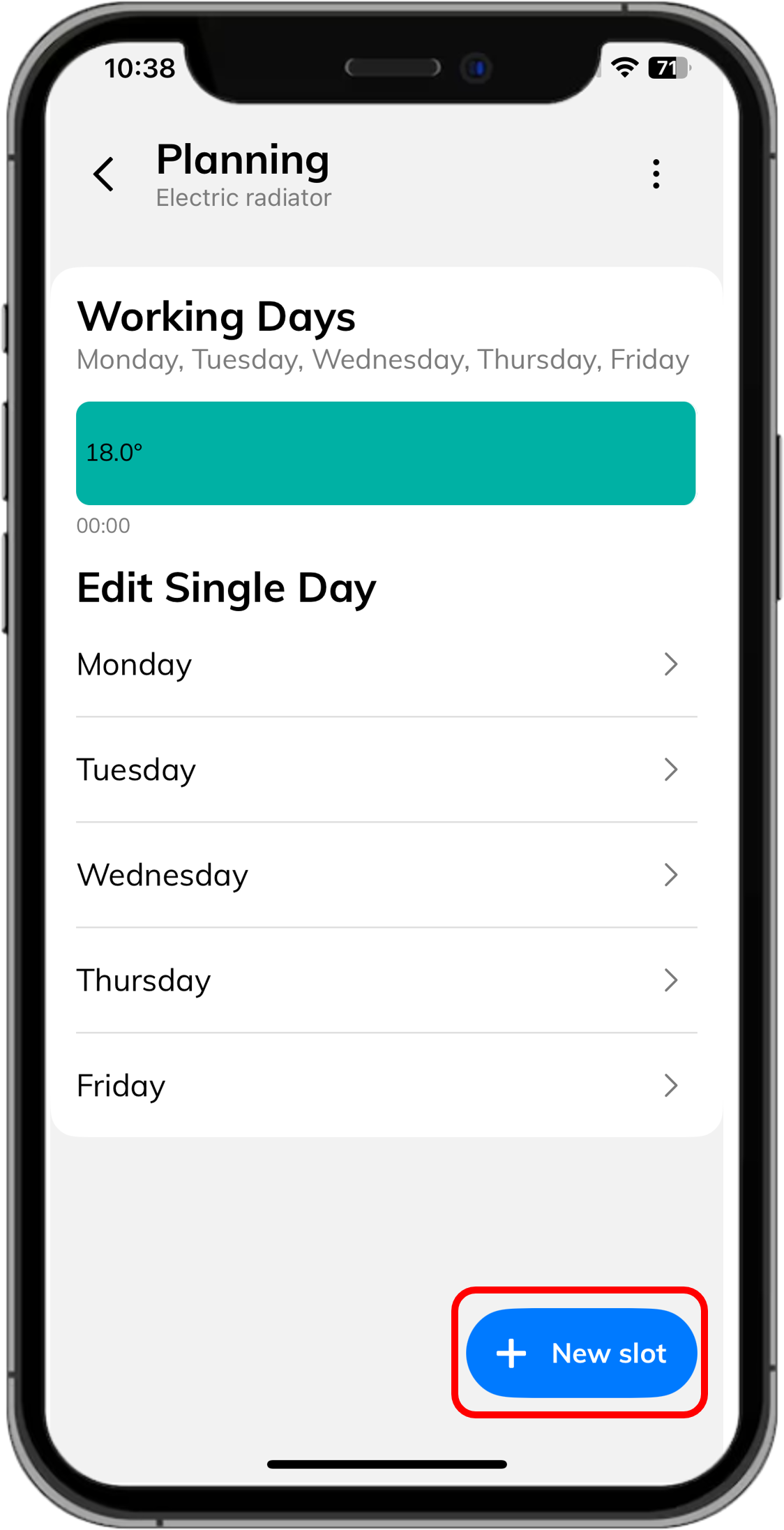

      Tap the blue button “+ New Slot”.

    • Create a schedule for specific days:
      Select the day of the week you want to schedule.

    • Adjust preset temperatures:
      Tap the colored temperature bar.

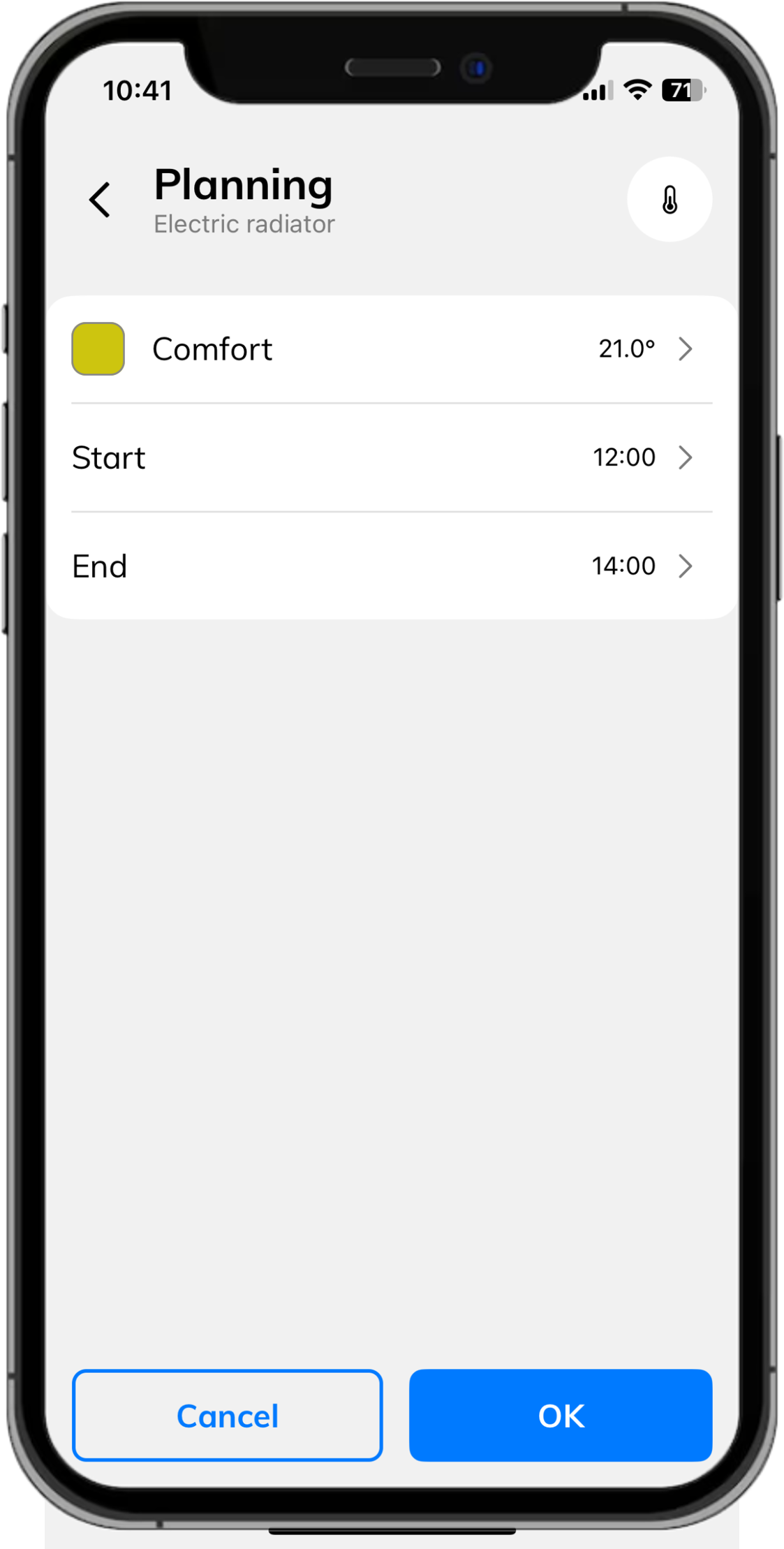

  1. Set the start and end time for your new time slot.

    IMPORTANT!
    Each time slot covers the period from 00:00 a.m. to 00:00 p.m.

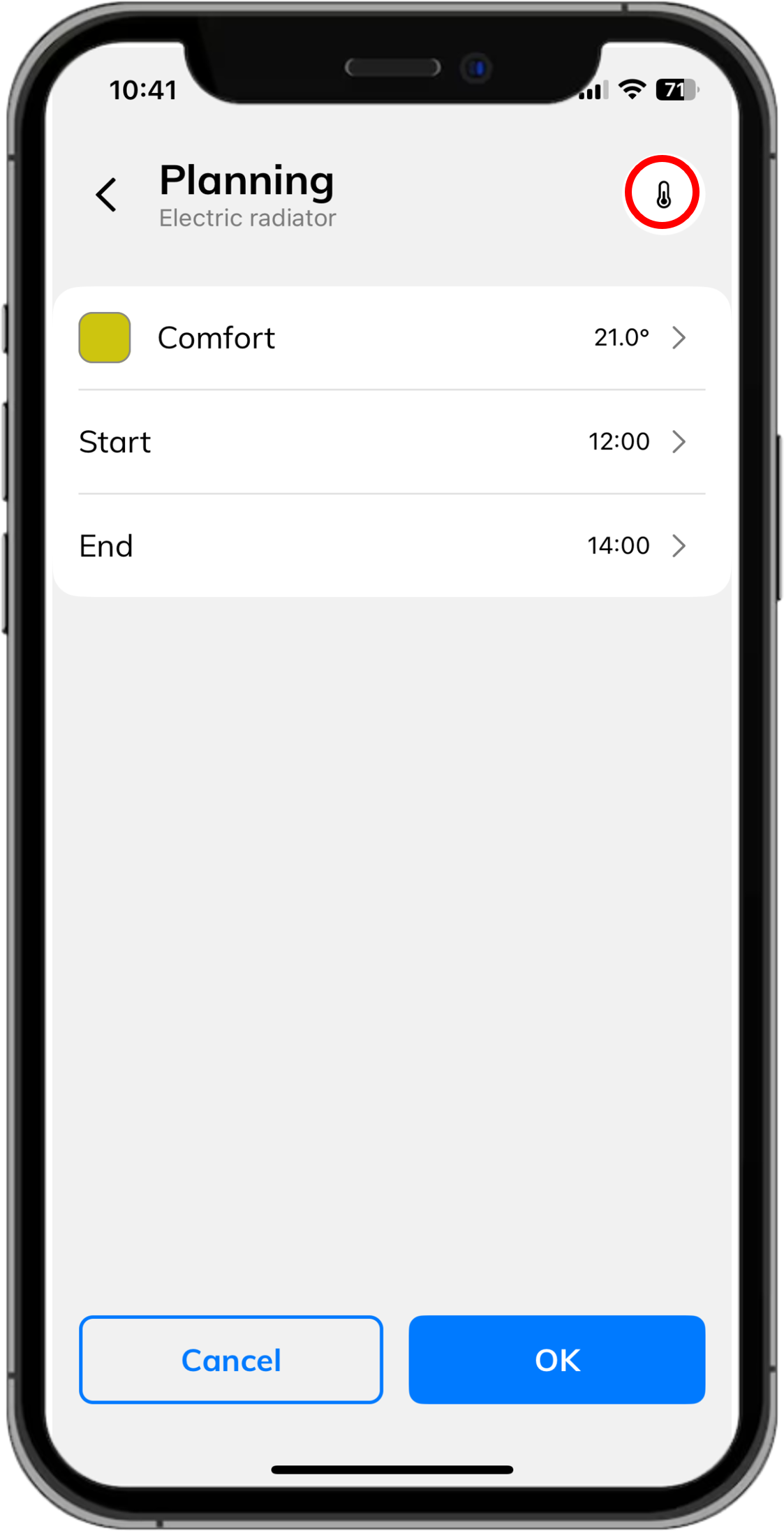

  1. Tap the thermometer icon (top-right) to assign a temperature (ECO or COMFORT) to the new time slot.


  2. Tap OK to confirm.

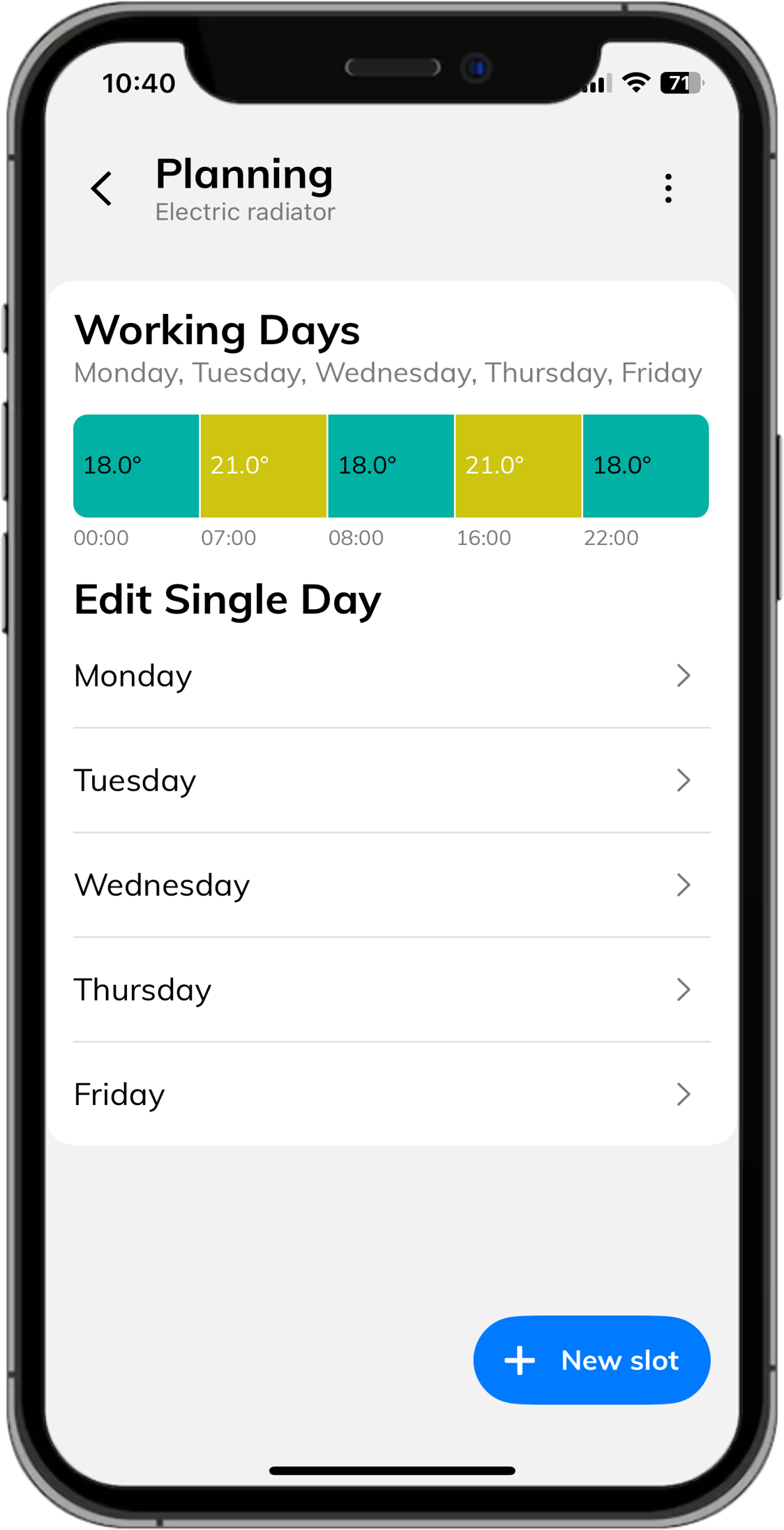

  1. Your time slot is now set. You can create additional slots as needed.





IMPORTANT

When programming your radiator, follow these operating rules:

  • The COMFORT temperature must always be at least 0.5 °C higher than the ECO temperature.
    If a lower value is selected, the ECO temperature will automatically adjust to match the COMFORT temperature.

  • The ECO temperature can never be lower than 12 °C or higher than the COMFORT temperature.
    If an ECO temperature higher than COMFORT is set, the change will not be saved.

  • The ANTIFREEZE temperature cannot be included in schedules.
    It can only be set from the radiator’s home screen.



How to check if Scheduled Mode is ON

  1. Make sure your smartphone is near the radiator.


  2. Open the IRSAP NOW app and log in.


  3. Connect the app to your radiator.

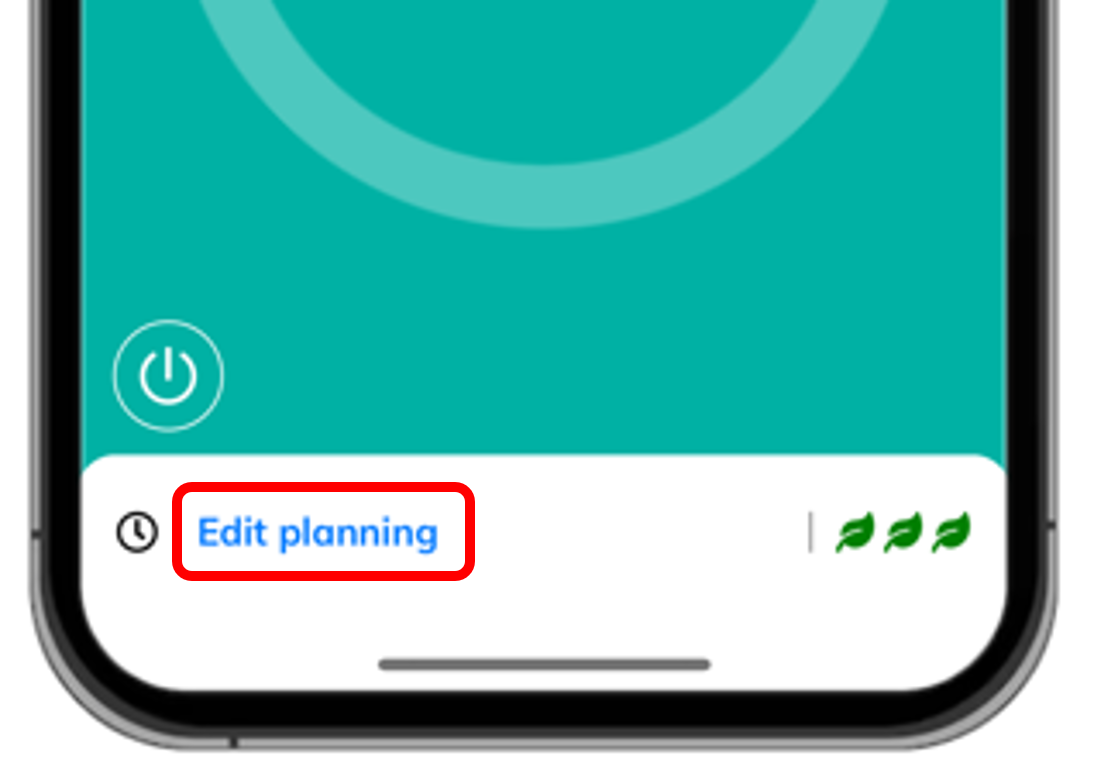

SHEDULING IS ACTIVE

You’ll read Edit planning at the bottom of the screen.

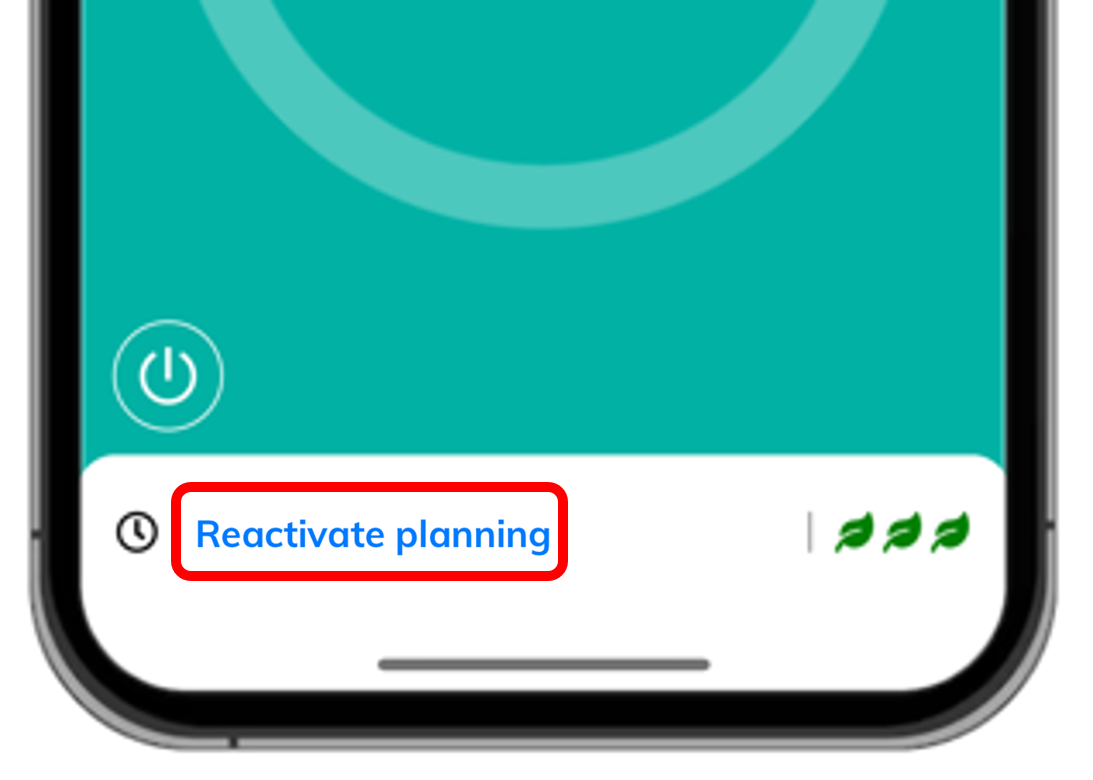

SHEDULING IS NOT ACTIVE

You’ll read Reactivate planning at the bottom of the screen.

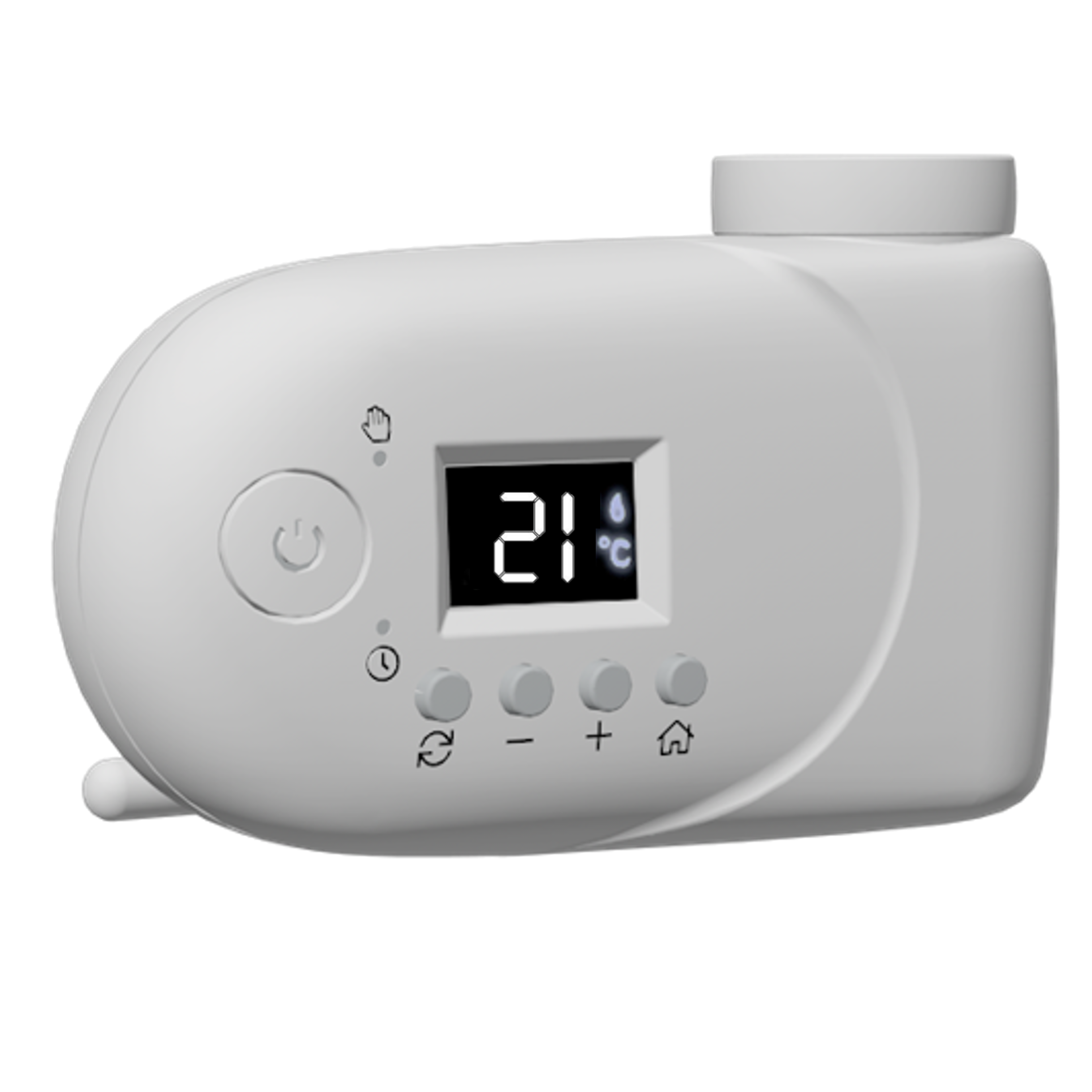

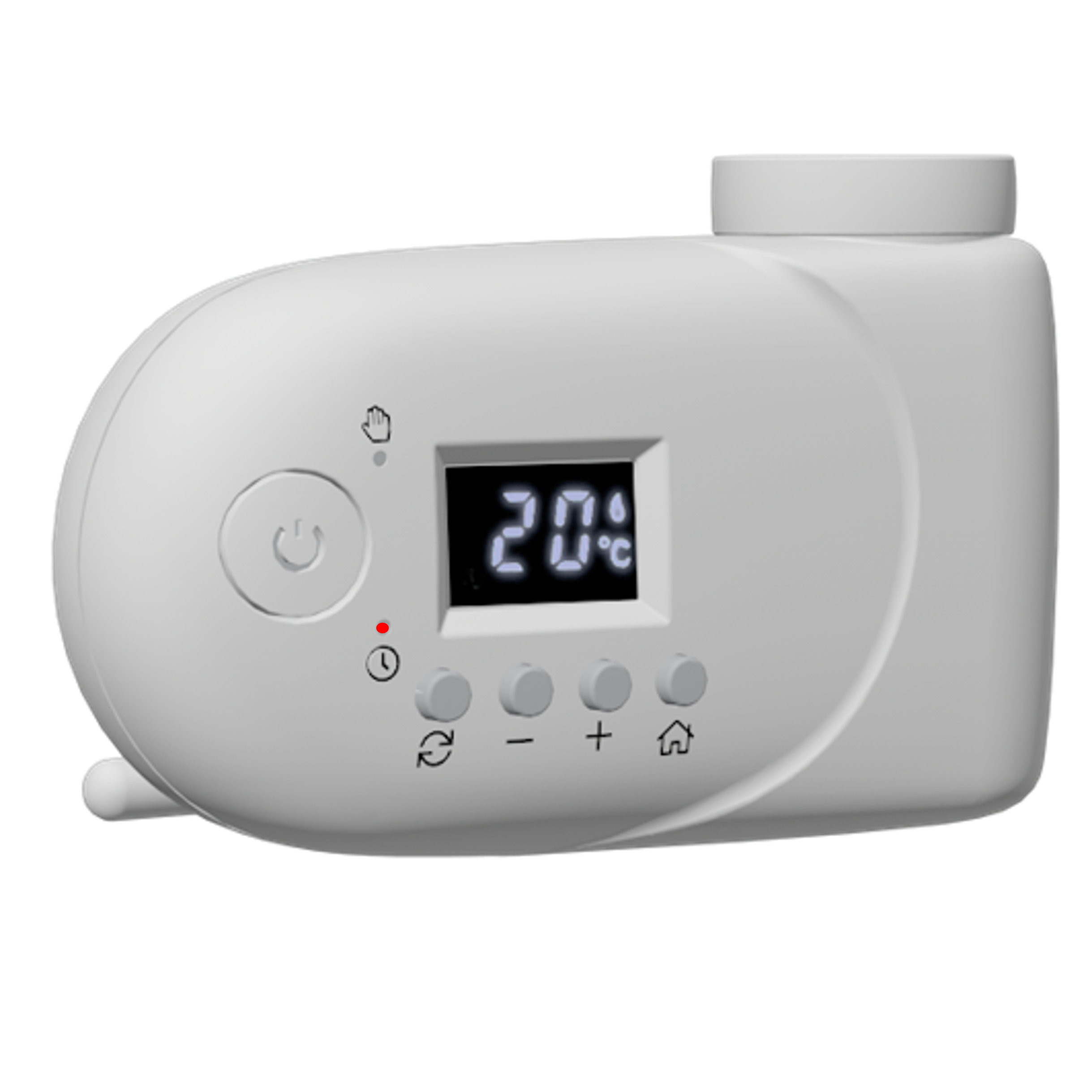

How to check if Scheduled Mode is ON directly on the radiator
  1. Press the power button to turn the display on.
  • The scheduled mode LED will light up red for 5 seconds.


  • The display will show the set temperature.





Tips and Troubleshooting

Here you can find answers to the most frequently asked questions:

Explore the Radiator Main screen page to discover extra functions available in the app.



Still need help?

If you have followed all the steps and the problem persists, please contact our Customer Service.
